| Nguồn gốc | CHINA |
| Hàng hiệu | DAWNERGY |
| Chứng nhận | CE |
| Số mô hình | 47U 800x1000mm |

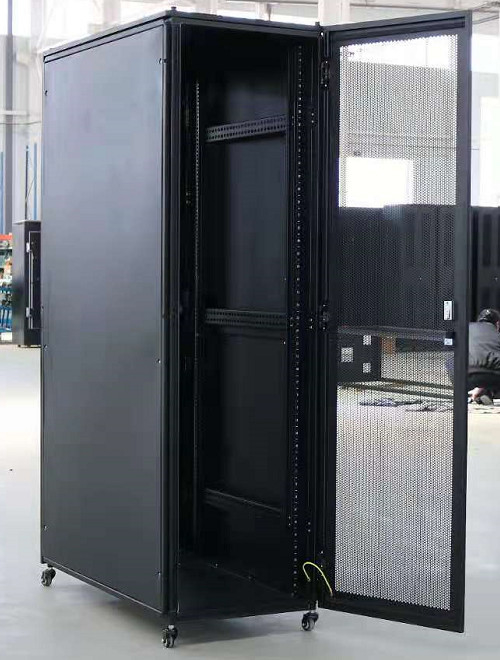

47U 800x1000mm Network Cabinet with Monitorable Vertical PDU
Product Features
· Applicable for all rack-mounted equipment conforming to ANSI/ EIA standard (customized products include)
· Solid modular alloy steel frame, maximum static load capacity up to 1500 KG,
· Widened cabinet structure design, equipping with vertical cable ducts to orderly lay a large volume of cables
· Movable equipment mounting pillars for different depth equipment
· Top and bottom cover plates both with cabling passageways for various cabling requirements
Technical Specification
· Material: Frame structure, Front door: back door: Cold rolled steel sheet (SPCC)
See Standard Configuration Table for the details
· Load Capacity: Up to 1500KG
· Optional Color: Black
· Surface Finish: Degreasing, Pickling, Phosphor zing, electrostatic powder spraying
· Standard Supply: See Standard Configuration Table
· Protection Category: IP20
U-marked Movable equipment mounting pillar Vertical cable management
screws and nuts 1U blank plate (full loaded at rear)
Standard Configuration Table
| |
No. | Part Name | Material | Qty. |
| 01 |
Cabinet Frame |
SPCC Cold rolled steel sheet | 1 | |
| 02 | Cooling fan unit | ABS＆ Steel | Option | |
| 03 |
Up cover plate |
SPCC Cold rolled steel sheet | 1 | |
| 04 | Rear door |
65% Perforated double through |
1 | |
| 05 | Side plate | SPCC Cold rolled steel sheet | 2 | |
| 06 | Shelf plate | SPCC Cold rolled steel sheet | optional | |
| 07 | 2.5” wheel | ABS & SPCC | 4 | |
| 08 | Down cover plate | SPCC Cold rolled steel sheet | 1 | |
| 09 |
Cabling passageway cover plate |
SPCC old rolled steel sheet | 5 | |
| 10 | Front door | 65% Perforated Single door | 1 | |
| 11 |
Equipment mounting pillar |
Cold rolled steel | 4 |
Ordering Information
| Optical height (U) | Width (mm) | Depth (mm) |
| 42 | 800 | 1067 |
| 45 | 800 | 1200 |
Accessories
| Product | Specification |
| Through | Steel mesh |
| PDU Spilled | 2pcs |
| Shelf plate | Optional |
| Fan | Optional Number 1~4 |
| Screws and nuts | material: carbon steel; M6, black, used for network cabinet |
Package
Assembly (Plywooden pallet)
Monitorable Vertical PDU Specification
| No. | Ihave | Parameters | |
| 1 | Monitoring function |
Total load current; Total input voltage; Total load power and power factor; Total electricity; Support 4/8/12/16/20/24 branch of the current, power and electrical parameters of the collection and monitoring; Running state indicator light of the machine; Temperature/humidity sensor status; |
|
| 2 | Control function |
Supports on/off control of 4/8/12/16/20/24 units; Output unit order on, shut down, interval delay time setting; |
|
| 3 | The original state protection function | The original state of each output unit remains after the restart or power loss; | |
| 4 | Alarm limit setting function |
The upper and lower limit values of the total load current; The upper and lower limit values of the load current per output unit; Temperature/humidity, smoke status, flooding state monitoring and warning; |
|
| 5 | The system's default alarm function |
When the total load current exceeds the rating; When the load current per output unit exceeds the rating; Alarm above set voltage The temperature and humidity sensor alerts |
|
| 6 | Waring |
The control panel status light of the native system flashes and the buzzer beeps; Mail alert, automatically send E-mail to the system administrator; SNMP sends alert status information; |
|
| 7 | Timing settings | Schedule tasks for branching | |
| 8 | Power metering function | Record the total amount of running power; | |
| 9 | Logging | Record with guard operation, history (total current, total voltage, total power, temperature/humidity) can be exported, power query. | |
| 10 | How to access it |
Web browser monitoring (https support); SNMP monitoring; Telnet access control through the command-line console; SSH； |
|
| 11 | TCP support | Supports TCP secondary development interfaces | |
| 12 | Network protocols | IP, TCP/UDP, Telnet, SMTP, SNMP, HTTP, HTTPS | |
| 13 | The display section | The LCD display allows 90-degree font orientation adjustment | |
| 14 | Output socket system | (21) IEC320 C13,(3) IEC320 C19 和 (3) NO 5-20R | |
| 15 | Cable plug | 32A Industrial plug | |
| 16 | Power input | 32A /208V AC | |
| 17 | Csmell | Black | |
| 18 | Input cable | 3m x 6 mm² RVV | |
| 19 | Nameplate | Product | Power Distribution Unit |
| Rated voltage | 208VAC 50/60Hz | ||
| Rated current | 32A | ||
| Rated power | 8600W | ||
