2-24F Mini Air Blown Fiber Optic Cable

Name: 2-24F Mini Air Blown Fiber Optic Cable
Brand: DAWNERGY
SKU: 2~24f
Price: 1 USD
Availability: InStock
Rating: 4.9 (169 reviews)

Nguồn gốc	CHINA
Hàng hiệu	DAWNERGY
Chứng nhận	CE/TELCORDIA
Số mô hình	2~24f

Chi tiết sản phẩm

Product:

2~24f Mini air blown cable

Application:

Duct and Aerial

Outer Sheath:

HDPE OR PA

central Strength member:

FRP(maybe with PE layer）

Tube:

Loose Tube

No. of fiber per tube:

12-144

Điểm nổi bật:

24F Air Blown Fiber Optic Cable

Mini Air Blown Fiber Optic Cable

Loose Tube air blown fiber cable

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

100KM

chi tiết đóng gói

Wooden DRUM

Thời gian giao hàng

10-20 work days

Điều khoản thanh toán

T/T, L/C, D/A, D/P

Khả năng cung cấp

10,000KM PER DAY

Mô tả sản phẩm

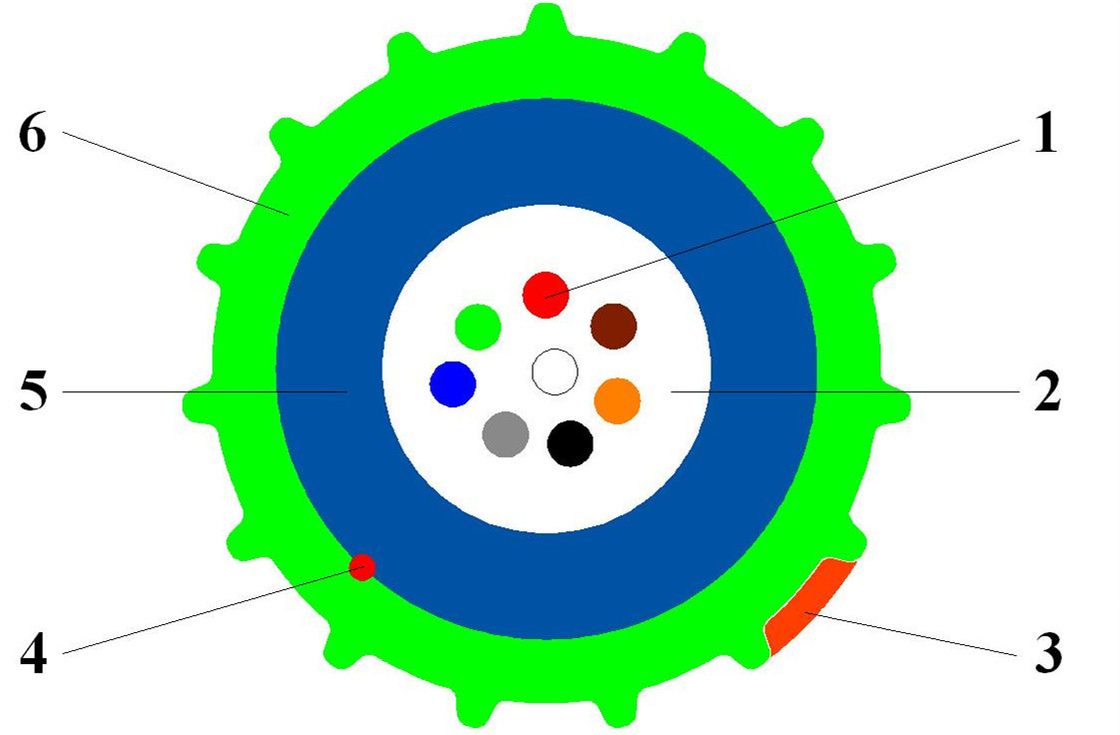

Mini air blown cable 2~24f

Features and Benefits

Special complex material loose tube, reduce the shrink of tube in cold temperature.
Accurate fiber length balance, stable mechanical and temperature performance.
Particular technique control, prevent sheath form crinkling during installation.
Structure Innovation in sheath, enhancing the blowing performance.

Technical Index

Cable Type	GCYFXTY－XB1.3(MTE + Cable diameter)
Cable Type	MTE2.0	MTE2.3	MTE2.5	MTE2.8
Fiber Count	2～4	6～12	2～12	14～24
Thickness of HDPE sheath	Nominal value:0.20mm, Average value:0.15mm
Nominal Overall Diameter	2.0±0.1mm	2.3±0.1mm	2.5±0.1mm	2.8±0.1mm
Weight	4.0 kg/km	5.0 kg/km	6.0 kg/km	7.0kg/km
Cable Fibre Attenuation (single mode)	0.35dB/km max @1310nm 0.22dB/km max @1550nm
Max. Tensile Strength	40N	50N	60N	60N
Max. Crushing force	600N/100mm
Min. Bending radius -Static / Dynamic	10 / 20 outer Φ
Temperature	Storage -30～＋50℃；Installation-10～＋40℃；Operation-20～＋50℃
Cable service life (estimate value)	25 years

Testing Index

Blowing performance

Blowing Tool	Typical blowing length
PLUMETTAZ:PR-140, MiniJet-400 etc. Air pressure : 13bar	Fibres Count	Duct type 3.5/5.0mm	Duct type 5.5/7.0mm
	2～12 fibres	800m	1500m
	14～24 fibres	/	1500m

Mechanic performance

Item	Testing Method	Testing Results		Specified Value
Tension performance	IEC 60794-1-21-E1	Optical fibre strain	Additional attenuation	Max. Tensile Strength = Short term Allowable tension ≈2×(Long term Allowable Tension)
		Short term:≤0.3％ Long term:≤0.1％	Short term:<0.1 dB, reversible； Long term:≤0.03 dB
Crush	IEC 60794-1-21-E3	Short term:<0.10 dB, reversible； Long term:≤0.03 dB； The outer sheath has no visible crack.		Short term crushing force =600 N Long term crushing force =300 N
Repeated bending	IEC 60794-1-21-E6	After test, ≤0.03 dB； The outer sheath has no visible crack.		R=20 outer Φ
				Bending load =15N
				Bending times =25
Torsion	IEC 60794-1-21-E7	After test, ≤0.03 dB； The outer sheath has no visible crack.		Torsion angle=±180º
				Torsion load =15N
				Torsion times =5
Cable bend	IEC 60794-1-21-E11A	After test, The optical fibre can’t be broken； The outer sheath has no visible crack.		R=20 outer Φ 10Turns Cycles times =5
*All optical testing proceeded at 1550 nm*

Environment performance

Item	Testing Method	Testing Results
Temperature cycling	IEC 60794-1-22-F1	Allowable additional attenuation (1550nm)
		G.652B	G.652D	G.657
		≤0.10 dB/km, reversible；
Water penetration	IEC 60794-1-22-F5B	Water column: 1m, 3m cable, Period:24 hours No water leak through the open end of cable
Filling compound flow	IEC 60794-1-22-F16	70℃,Period:24 hours No compound flow from the cable

Other Index

2-24F Mini Air Blown Fiber Optic Cable 10

Sheath color: Green

Sheath Marking

The outer sheath is marked at intervals of 1 meter as follows:

ABC MINI number and type of fibre MTE Cable diameter [MM-YYYY] =length marking in meter=

Example: ABC MINI 24 G652D MTE2.8 [04- 2014] =1888m=

Delivery Lengths

Standard delivery lengths are 2km, 4km, 6km with a tolerance of -1%～+3%.

Fibre Count	Drum length (m)	Drum Size Φ×W (mm)	Packing Size L×W×H (mm)	Weight (Gross) (kg)
2～12 Fibres φ2.0-2.5	2000	Φ450×370	480×370×645	27
	4000	Φ500×370	530×370×695	39
	6000	Φ550×370	580×370×745	51

14～24 Fibres φ2.8	2000	Φ500×370	530×370×695	31
14～24 Fibres φ2.8	4000	Φ550×370	580×370×745	46
