2 Core SC Fiber Optic Connector With Waterproof Housing

Name: 2 Core SC Fiber Optic Connector With Waterproof Housing
Brand: Dawnergy
SKU: DA-FDB-2G-A-8-x
Price: 2 USD
Availability: InStock
Rating: 5 (158 reviews)

Nguồn gốc	CHINA
Hàng hiệu	Dawnergy
Chứng nhận	CE/ANATEL/ROSH
Số mô hình	DA-FDB-2G-A-8-x

Chi tiết sản phẩm

Scope of applicationlication:

3.0x2.0mm drop cable or indoor cable

Max capacity:

2 core

Size:

82(L)x105(W)x23(H)mm

Adapter panel:

SC *2pcs

Insertion loss:

<0.2dB

Vật liệu:

ABS

Color:

White

Operating Temp:

-40 ~ +85

Điểm nổi bật:

2 Core SC Fiber Optic Connector

Waterproof Housing Fiber Optic Connector

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

Giá bán

2USD

Thời gian giao hàng

10-20 work days

Điều khoản thanh toán

L/C, D/A, D/P, T/T

Khả năng cung cấp

1000pcs per day

Mô tả sản phẩm

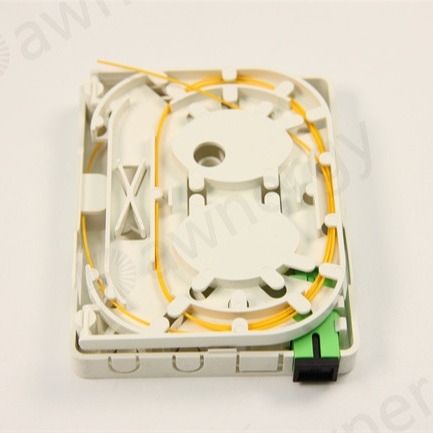

DA-FDB-2G-A-8-x Fiber Optic Distribution Box

Dawnergy’s DA-FDB-2G-A-8-x fiber optic distribution box can hold up to 1 sub scribers.A 2 Core Fiber Optical Socket Waterproof with SC Adapter is a type of fiber optic socket that is designed for outdoor use in harsh environments. It is typically used to connect fiber optic cables to equipment or to extend existing fiber optic networks.

Features

Small size and light weight for easy installation compact body.
Water-proof design.
Easy installations: Ready for wall mount – installation kits provided.
Adapter slots used – No screws and tools needed for installing adapters.
Saving space: Double-layer design for easier installation and maintenances.
Lower layer for splicing.
Upper layer for cross-connecting and fiber distribution.
Fully stable adapter panel, no risk of movement.
Lock provided for extra security.
Fiber can get in from bottom or side.

Applications

FTTH access networks

Dimension (mm)

82(L)x105(W)x23(H)

Specifications

Parameters	Specification
Max. No. of Adapters	2
Adaptor Type	SC
Suitable Input Cable (mm)	3.0x2.0 drop cable or indoor cable
Color	White
Material	ABS
Tensile Strength	＞50N
Mounting Way	Wall Mounting
Operating Temp (°C)	-40 ~ +85
Dimensions (mm)	105 (L) × 82 (W) × 23 (H)
Weight (g)	88

Standard Package

No.	Name	Unit	Quantity	Picture
1	Fiber Optic Distribution Box	piece	1
2	SC/APC Adapter	pieces	2
3	SC/APC 900um Pigtail 0.5m	pieces	2
4	Accessory Bag	set	1

Ordering Information

Model	Name	Description
DA-FDB-2G-A-8-x	Fiber Optic Distribution Box	Material: ABS; Size (mm): 105 (L) × 82 (W) × 23 (H); Suitable for 2 pieces of SC adapters; SC/APC Adapters and pigtails included

2 Core SC Fiber Optic Connector With Waterproof Housing 0

2 Core SC Fiber Optic Connector With Waterproof Housing 1

2 Core SC Fiber Optic Connector With Waterproof Housing 2

Our main products are:
Fiber Optic Cables,
Fiber Optical Splitters,
Fiber Optic Patch Cord,
Pigtails,WDM Modules,
Fiber Distribution Boxes,
Fiber Optic Sockets,
Optical Distribution Cabinets/Hubs,
Outdoor Telecom Cabinets,
Optical Distribution Frames,
Network Rack cabinets, etc.
