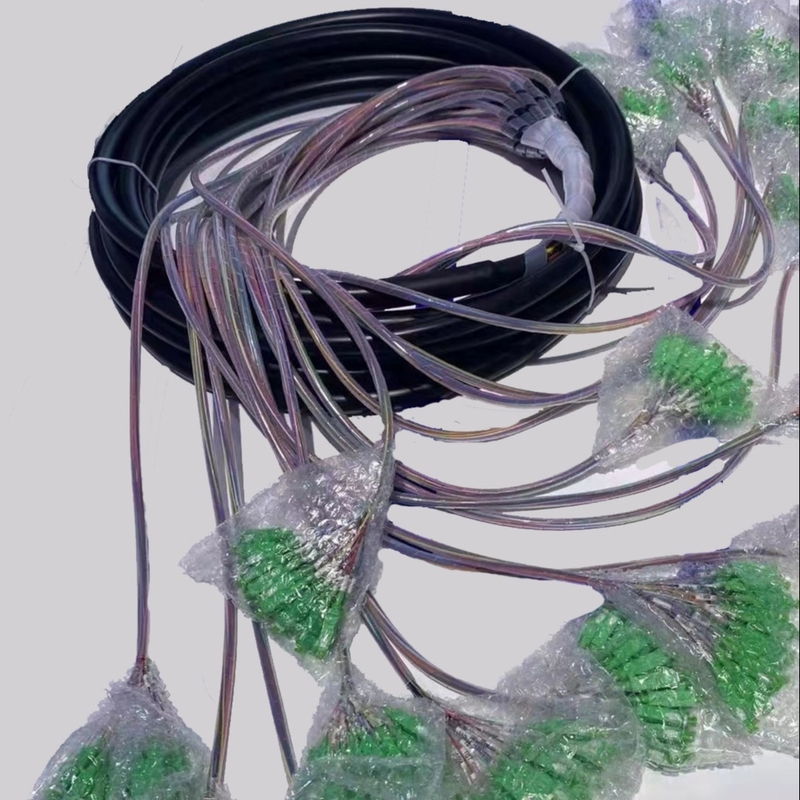

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Features
Cable Profile View
Cable Parameters
| Items | Specifications | |
| Fiber Count | 24~432F | |
| Colored Coating Fiber | Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown, | |
| Colored Coating Fiber wish Color Point | Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown, | |
| Fibers in One Tube | 12 fibers (24,48F) | |
| Loose Tube | Dimension | 1.95 mm±0.05mm (24, 48F) |
| Material | PBT | |
| Color | Blue,Orange,Green,Brown (24,48F) | |
| Central Strength Member | Diameter | 1.5mm (24, 48F) |
| Material | FRP | |
| Outer Jacket | Dimension | 9.8 mm±0.5mm (24, 48F) |
| Material | PE | |
| Color | Black | |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tension(Long Term) | N | 600 (24, 48F) 1000 (288,432F) |
| Tension(Short Term) | N | 1500 (24, 48F) 3000 (288,432F) |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ℃ | -10～+50 |
| Operating Temperature | ℃ | -20～+60 |
| Storage Temperature | ℃ | -20～+60 |
Ferrule End Face Inspection Criteria
| Defects | Zone A (Area Near Core) ≤40um | Zone B (Cladding) 40~125um | Zone C (Coating) 125~250um |
| Scratch (width) | None | Light scratch (white): None | >3um: None |
| Dark scratch (black): None | |||
| Pits & Irremovable material (Diameter) | None | ≥2um: None | ≥10um: None |
| Chipping (Diameter) | None | ||
| Crack/dust/contamination | None | ||
| Epoxy ring | Width<2um, total length≤1/2 fiber diameter | ||
Ferrule End Face Geometry Parameters
| Parameters | UPC | APC |
| Radius of Curvature | 10~25mm | 5~12mm |
| Fiber Undercut or Protrusion | ≤ 100 nm | ≤ 100 nm |
| Apex Offset | ≤ 50 μm | ≤ 50 μm |
| Polishing Angle | 8 +/- 0.3 degree |
